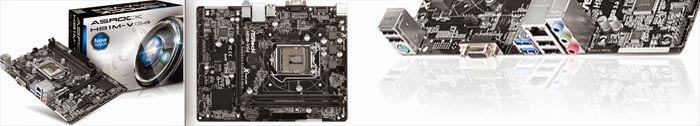

Mobo LGA 1150 H81 Core i3 i5 i7 Termurah

Banyak orang bingung memilih motherboard, terutama untuk procie teknologi terbaru. Mereka rata-rata merasa sayang dengan procie handalnya jika dipasangkan dengan mobo kelas low end. Itu semua salah, ada beberapa jenis motherboard yang memiliki harga super murah namun memiliki fitur yang sangat lengkap. Sebut saja socket LGA 1150 dengan chipset H81 yang sudah support dengan processor intel gen 4 haswell series baik core i3, core i5 maupun core i7.
Rata-rata motherboard low end masih dibekali dengan intrafe Harddisk SATA III 3Gb/s. Daftar mobo di bawah ini walaupun harganya cukup murah namun sudah dibekali dengan interface HDD dan SSD yang sangat maknyus, yaitu SATA III 6 Gb/s. Jadi, performance komputer gaming anda menjadi lebih sangar.

Memory yang biasanya digunakan motherboard low end hanya mampu menampung kecepatan memory maksimal 1333 Mhz. Kecepatan tersebut tidak berlaku untuk daftar mobo di bawah. Kecepatan memory maksimum yang mampu disematkan pada penggunaan komputer standar (non overclock) mencapai 1600 Mhz.  Memory dengan kecepatan tersebut masuk dalam jajaran memory mid end. Mantap bukan, mobo low end mampu dipasangkan dengan memory mid end.
Nah.. ini merupakan fitur yang paling penting dan harus dimiliki oleh motherboard yang akan anda beli. PCIe (PCI Ekspress). Daftar motherboard di bawah ini sanggup dipasangkan dengan Graphic Card Mid End seperti GTX 760 atau R9 270.
Jadi, menggunakan processor, memory dan harddisk terbaru tidak harus membeli motherboard mahal (mid end dan high end), yang penting adalah motherboard tersebut memiliki fitur yang lengkap, sehingga mampu dipasangkan dengan hardware-hardware kelas Mid End. Berikut ini daftar motherboardnya:
_____________________________________________________________________________________________

Kisaran Harga Rp. 604.000

General
CPU
– Supports New 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors
– (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology
Chipset
– Intel® H81
Memory
– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB
*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
BIOS
– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
 Audio, Video and Networking
Graphics
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel®HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 1792MB
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111G
– Supports Wake-On-LAN
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
 Expansion / Connectivity
Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x1 Slot
Storage
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
– 1 x IR Header
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin))
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports
Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 4 x USB 2.0 Ports
– 2 x USB 3.0 Ports
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature
ASRock APP Shop, ASRock A-Tuning, ASRock Instant Flash, ASRock APP Charger,  ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier, ASRock Easy Driver Installer, ASRock Interactive UEFI, ASRock Fast Boot, ASRock Restart to UEFI, ASRock USB Key, ASRock FAN-Tastic Tuning.
Hybrid Booster : ASRock U-COP, Boot Failure Guard (B.F.G.), Good Night LED
Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
Hardware Monitor
– CPU/Chassis temperature sensing
– CPU/Chassis/Power Fan Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design
OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
– FCC, CE, WHQL
– ErP/EuP ready (ErP/EuP ready power supply is required)
_____________________________________________________________________________________________

2 ASUS H81M-K
Kisaran Harga Rp. 771.000

CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Chipset
Intel® H81
Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max.resolution 1920 x 1200@60Hz – Supports RGB with max. resolution 1920 x 1200@60Hz
Maximum shared memory of 1024 MB
Expansion Slots
1 x PCIe x16
2 x PCIe 2.0 x1
Storage
Intel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow and 2 x SATA 3Gb/s port(s), dark brown
LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
– Supports : Jack-detection, Front Panel Jack-retasking
USB Ports
Intel® H81 chipset :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
Intel® H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
Special Features
ASUS EPU : EPU
ASUS Exclusive Features :
– GPU Boost
– Ai Charger
– AI Suite 3
– Anti-Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
ASUS Q-Design :
– ASUS Q-Slot
Operating System Support
Windows® 8
Windows® 7
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x LAN (RJ45) port(s)
1 x PS/2 mouse (green)
2 x USB 3.0 (blue)
1 x DVI
2 x USB 2.0
1 x D-Sub
3 x Audio jack(s)
Internal I/O
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x 24-pin EATX Power connector(s)
2 x SATA 6Gb/s connector(s)
1 x 4-pin ATX 12V Power connector(s)
2 x SATA 3Gb/s connector(s)
1 x Front panel connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x Internal speaker connector(s)
1 x S/PDIF out header(s)
1 x Clear CMOS jumper(s)
Accessories
User’s manual, I/O Shield and 2 x SATA 6Gb/s cable(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc
Drivers, ASUS Utilities, EZ Update and Anti-Virus Software (OEM Version)
Form Factor
uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
_____________________________________________________________________________________________

3 MSI H81M-P33 V2

Kisaran Harga Rp. 777.000
CPU
• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Chipset
• Intel® H81 Express Chipset
Main Memory
• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
– Supports Dual-Channel mode
Slots
• 1 x PCIe 2.0 x16 slot
• 2 x PCIe x1 slots
On-Board SATA
• SATAIII controller integrated in Intel® H81 chipset
– Up to 6Gb/s transfer speed.
– Supports two SATAIII ports (SATA1~2) by H81
• SATAII controller integrated in Intel® H81 chipset
– Up to 3Gb/s transfer speed.
– Supports two SATAII ports (SATA3~4) by H81
USB 3.0
• 2 x USB 3.0 ports by Intel H81 on the back panel
• 2 x USB 3.0 ports by Renesas on the front panel
Audio
• Chip integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 spec
LAN
• Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111G
Internal I/O Connectors
– 1 x ATX 24-Pin power connector
– 1 x 4-pin ATX 12V power connector
– 2 x SATAIII connectors
– 2 x SATAII connectors
– 1 x USB 3.0 connector
– 2 x USB 2.0 connectors
– 1 x Serial port connector
– 1 x Trusted Platform Module (TPM) header
– 1 x Chasis intrusion connector
– 1 x Front Panel Audio connector
Back Panel I/O Ports
– 1 x PS/2 keyboard port/mouse port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN Jack
– 1 x 3 in 1 audio jack
– 1 x Graphics card port
– 1 x DVI-D port
– 1 x parallel port
BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 228 x 226mm  Micro-ATX Form Factor
Mounting
• 6 mounting holes
_____________________________________________________________________________________________
_____________________________________________________________________________________________
4 GIGABYTE GA-H81M-DS2
Kisaran Harga Rp. 799.000

PU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors / Intel® Pentium®processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
Intel® H81 Express Chipset
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor:
           1 x D-Sub port, supporting a maximum resolution of 1920×1200
           Maximum shared memory of 1 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset:
         2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
         2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
USB
Chipset:
          Up to 2 USB 3.0/2.0 ports on the back panel
         Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x parallel port
1 x serial port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Q-Flash
Support for Xpress Install
Support for APP Center
@BIOS
EasyTune
EZSetup
USB Blocker
Support for ON/OFF Charge
Bundle Software
Norton® Internet Security (OEM version)
Operating System
Support for Windows 8/7
Form Factor
Micro ATX Form Factor; 22.6cm x 17cm
